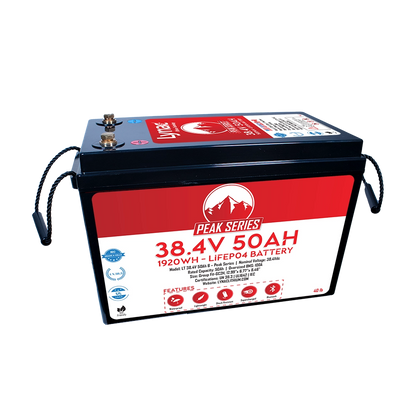

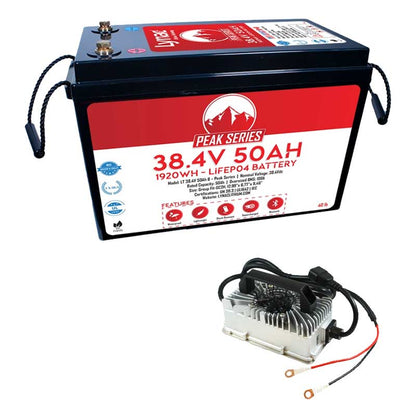

Lynac Lithium Battery kit for 36V Trolling Motors

This 50 amp-hour (Ah) lithium-ion battery from Lynac Lithium with an integrated onboard charger designed for 36V trolling motors is a compact, powerful, and efficient energy solution for boating applications. With a nominal voltage of 38.4V, this battery system delivers ample power for extended trolling motor operation, providing reliable performance across a range of conditions.

Works great with Minn Kota, Power-Pole and Garmin and other 36V Trolling Motors.

Lithium-ion batteries, especially lithium iron phosphate (LiFePO4), are preferred for trolling motors due to their high energy density, light weight, and longer lifespan compared to traditional lead-acid batteries. At 50Ah, this battery can supply consistent energy to run a trolling motor for long periods, making it ideal for anglers and boaters seeking a dependable source of power.

The onboard charger simplifies recharging, allowing the battery to be easily charged from a standard AC outlet. This eliminates the need for external charging equipment, streamlining the charging process and ensuring the battery is ready for each outing. Additionally, lithium-ion batteries typically feature built-in Battery Management Systems (BMS), providing protections like overcharge, over-discharge, short circuit, and temperature regulation, which enhance safety and extend battery life.

Overall, this lithium-ion battery and onboard charger setup is an excellent choice for high-performance, low-maintenance, and eco-friendly trolling motor power.

Summary:

Pinnacle of Power output for LFP Smart batteries. The Peak Series is engineered to bring you a compact, drop-in ready boost for Electric Boats - Golf Carts - Trolling Motors. Our high output BMS comes loaded with all the latest monitoring and protection features that will not be beat.

250AMP PEAK Oversized Premium Software BMS – Solid Grade A+ 26650 Cylindrical Cell Construction – Bluetooth/ Canbus  Monitoring – Low Temp Charge Protection –  Sealed IP 65 GC2H Size Case – Removable Top –  Designed to deliver peak power output – Simple drop-in replacement for Electric Boats, Trolling Motors and Golf Carts will severely boost performance while saving a ton of weight and space.

36V – IP67 Sealed Onboard Battery Charger – 1 Bank @ 43.2V 15A – 4 Stage – LFP AGM Charging Algorithm – Premium Charging System for Trolling Motor – Golf Carts – EV – Marine

Features:

• Waterproof: Battery was designed to withstand splash damage and/or brief water submersion
• Feather Weight: Battery offers half the weight of its lead-acid counterpart.
• Shock Resistant: Battery is vibration tested and designed with solid casing to help withstand shock damage.

Battery Data Sheet:

Battery Specs:

Product Model: LT 38.4V 50Ah B - Peak Series
Rated Capacity: 38.4V 50Ah 1920Wh
Nominal Voltage: 38.4 Vdc
Cycle Life: 2000 @ 0.2C (100% DOD), 6000 @ 0.2C (80% DOD), 10000 @ 0.2C (50% DOD)
Dimensions: BCI Group Fit GC2H 14.48” x 7.48” x 9.64” (368 × 190 × 245mm)
Weight: 40lbs (18.2kg)
Battery Management System: Charge Balancing, Current, Voltage, Short Circuit, Temperature, Low Temp Charge Protect, Software Adjustable Set Points
Cells: IFR26650 3.2V 3600mAh LiFePO4 14S12P
Charging Method: Constant Current - Constant Voltage (CC - CV): (0.2C to 43.2Vdc) - (43.2Vdc to 0.01C)
Voltage Limits: Charge: 43.2Vdc, Discharge: 30Vdc
Current Limits: Charge: 50Adc, Discharge: 50Adc Continuous, 250Adc Peak
Temperature Limits: Charge 0 ~ 45°C, Discharge -20 ~ 55°C, Storage -20 ~ 55°C
Connectivity: Parallel: ~ 15 (38.4Vdc)
Terminal Connector: M8 (5/16") Lug - Brass Bolt, Torque = 28N.m = 21ft.lbs
Certifications: UN 38.3, IEC626619-3600, 3.2V26650 CB IEC62133
Ingress Protection: IP65

Charging System Specs:

Product Model: ELITE 15A 43.2V Charger - Onboard
DC Output: 15A 43.2V, 12S LFP Battery Compatible
AC Input: 85V - 264V <10A
Max Power: 675W
Charging Modes: BMS Wakeup: Voltage Detect - CC: 15A - CV: 43.2V - Maintain: 1.5A
LED Charger Indicator: Flashing - Green/ Red: No Connection - Red: Charging - Green: Charged
Certifications: UL - cUL - CE - CSA
Dimensions: 6.7 x 3.5 x 2.8” (170 x 90 x 70mm)
Weight: 3.3lbs (1.5kg)
Operating Temperature: -35℃ ~ 65℃
Storage Temperature: -40℃ ~ 95℃
Efficiency: 90% CEC
Terminal Connections: 1.5m Cables with Sealed Ring Terminals - M8 - M10 (5/16" - 3/8")
Protection Properties: Short Circuit - Over Voltage - Over Current - Current Backflow - Reverse Polarity

Warranty:

If each Lynac Lithium Technology battery product does not sufficiently meet the outlined performance specifications, a full refund is to be given once the product is returned, inspected, and proven faulty. Seller assumes a 3-year manufacturer's warranty followed by a 4 year prorated warranty totalling 7 years. Each product must be registered and proven to be used and maintained according to the recommended operational and maintenance parameters that are to be agreed upon at the time of installation.

To register a product Click Here

Download the Lynac Intel Plus App to take full advantage of your battery!

This is the most powerful Bluetooth App with Extensive Monitoring Features, Adjustable Parameters, and a Remote Kill-Switch for Charging and Discharging.
For more information about the app check out: https://www.lynac.com/lynac-intel-plus-app-review/
