Lynac Lithium Battery kit for Ice Fishing Electronics

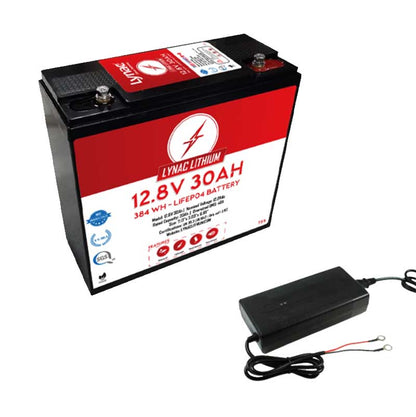

Our 30Ah lithium-ion battery kit is the perfect power source for ice fishing electronics, compatible with top brands like Garmin, Humminbird, Vexilar, and MarCum. Lightweight yet powerful, this battery delivers long-lasting energy for extended hours on the ice, so you can rely on your fish finder, GPS, and other equipment without worry. Designed to withstand cold conditions, it offers more time fishing and less time managing power—keeping you connected to the action all day. Contains 110V Wall adapter charger.

120AMP PEAK Oversized Premium BMS – Solid Grade A+ 26650 Cylindrical Cell Construction – Sealed IP 65 Size Case – Slim Profile

12V – Simple Power Supply Style Battery Charger – 1 Bank @ 14.6V 10A –  2 Stage – LFP AGM Charging Algorithm

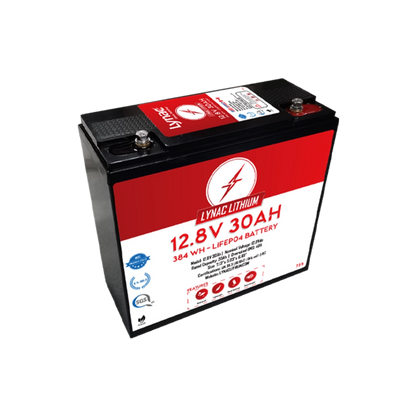

Battery Specs:

Product Model: 12.8V 30Ah
Rated Capacity: 30Ah, 384Wh
Nominal Voltage: 12.8Vdc
Cycle Life: 2000 @ 0.2C (100% DOD), 6000 @ 0.2C (80% DOD), 10000 @ 0.2C (50% DOD)
Dimensions: 7.13 x 3.03 x 6.69” (181 x 77 x 170mm)
Weight: 7.5lbs (3.4kg)
Battery Management System: Charge Balancing, Current, Voltage, Short Circuit, Temperature
Cells: IFR 26650 3600mAh LiFePO4, 4S12P
Charging Method: Constant Current - Constant Voltage (CC - CV): (0.2C to 14.4Vdc) - (14.4Vdc to 0.01C)
Voltage Limits: Charge: 14.6Vdc, Discharge: 10Vdc
Current Limits: Charge: 40Adc, Discharge: 40Adc Continuous, 120Adc Peak
Temperature Limits: Charge 0 ~ 45°C, Discharge -20 ~ 55°C, Storage -20 ~ 55°C
Connectivity: Series: 4 Units (51.2Vdc 30Ah), Parallel: ~15 (12.8Vdc)
Terminal Connector: M4 (3/16") Lug - Brass Bolt
Certifications: UN 38.3, IEC626619-3600, 3.2V26650 CB IEC62133
Ingress Protection: IP65

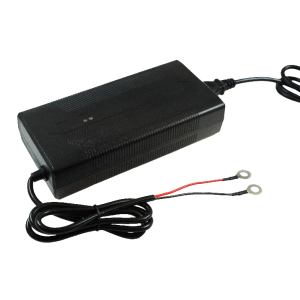

Charger rSpecs:

Product Model: 10A 14.6V Charger
DC Output: 10A 14.6V
AC Input: 85V - 264V < 3A
Max Power: 150W
Charging Modes: Constant Current: 10A - Constant Voltage: 14.6V
LED Charger Indicator: Flashing Red: Charging - Solid Green: Charged (or no connection)
Certifications: UL - cUL - CE - CSA
Dimensions: 7.0 x 3.0 x 2.0” (178 x 76 x 51 mm)
Weight: 2.64lbs (1.2kg)
Operating Temperature: -30℃ ~ 45℃
Storage Temperature: -40℃ ~ 75℃
Terminal Connections: 1m Cable with Sealed Ring Terminals - M8 (5/16")
Protection Properties: Short Circuit - Over Voltage - Over Current - Current Backflow - Reverse Polarity

Warranty:

If each Lynac Lithium Technology battery product does not sufficiently meet the outlined performance specifications, a full refund is to be given once the product is returned, inspected, and proven faulty.
Seller assumes a 3-year manufacturer's warranty followed by a 4 year prorated warranty totalling 7 years.
Each product must be registered and proven to be used and maintained according to the recommended operational and maintenance parameters that are to be agreed upon at the time of installation.
